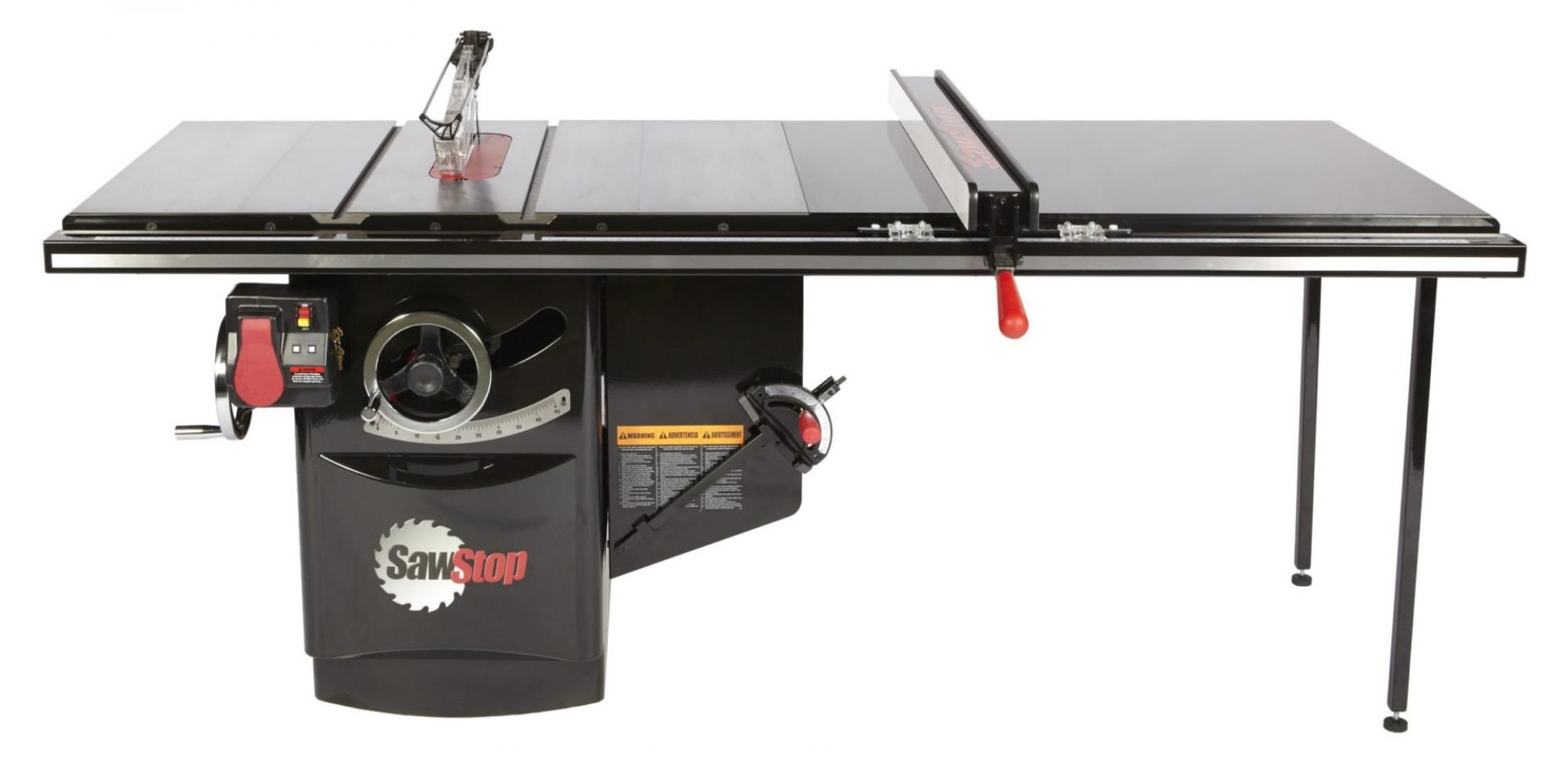

Industrial Cabinet SawICS™
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 5HP, 3ph, 230v configuration with a 52″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
52-INCH T-GLIDE FENCE ASSEMBLY: The 52-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection.
STRENGTH & STABILITY: The Industrial Cabinet Saw is almost 700 lbs of iron and steel – built for heavy-duty cycles with maximum stability and precision
EXPANSIVE TABLE: Larger, heavier tabletop provides an extensive cutting surface
DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port.
SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.
ADDED SAFETY: The Industrial Cabinet Saw has an integrated Lock-Out Tag-Out switch that cuts power to the saw ensuring that only authorized operators can operate the saw. As another added feature, interlock switches on the motor access panels prohibit saw operation if any doors are unlatched.
RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.
Starting at: $5,355.00
Select Your Power:
Select Your Fence/Rail/Table:Build & Price
SawStop’s commitment to quality, innovation, and safety over the past 20+ years has made us the best in the industry. Learn more about what makes a SawStop North America’s #1 selling Cabinet Saw
- 52" Industrial T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- SawStop Safety System stops on contact with skin.
- Horsepower: 5HP
- Dimension: 85 1/4" w, 36 1/2" d, 34" h
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10” Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
52" Rip Capacity:ICS53230: 52" T-Glide Fence Assembly
Motor Option(s) (60Hz TEFC):3, 5, 7.5 HP available
Overall saw dimensions 52 in:85 1/4" W x 36 1/2" D x 34" H
Motor configuration 3:ICS53230: 5 HP, 3 phase, 230v, 12 A, 60Hz, TEFC
Saw body footprint:20" W x 25" D (Cabinet)
Cast iron table:24" W x 30" D
Cast iron table (w/ extension wings):44" W x 30" D
Extension wings:10" W x 30" D each
Extension table 52 in:40" W x 30" D
Shipping weights - w/ 52 in fence systems:787 lbs (4 boxes)
Shipping dimensions (saw body only):40" W x 40" D x 40" H
Shipping weight (approx.):640 lbs (table saw only)
Assembled weights - w/ 52 in fence systems:685 lbs. (approx weight, actual weight varies by motor size)
Weights - table saw only:530 lbs. (approx weight, actual weight varies by motor size)
Blade:40-tooth Titanium, 5/8" arbor
Blade kerf:0.118" (3mm)
Blade plate thickness:0.078" (2mm)
Max. depth of cut, blade at 0º:3 1/8″
Max. depth of cut, blade at 45º:2 1/4"
Max. rip, right of blade - 52 in:52 1/2" (w/ optional 52" rails)
Max. rip, left of blade:12 1/2"
Dado diameter:8" (requires dado brake cartridge & insert)
Dado max. width:29/32”
Arbor diameter at blade:5/8"
Arbor Runout0.001" Maximum allowable runout
Main bearing size:62mm OD x 30mm ID
Second bearing size:52mm OD x 25mm ID
Table in front of blade (max. elevation):10 3/4"
Table behind blade (max. elevation):10"
Arbor Runout:0.001" Maximum allowable runout
Table flatness measured diagonally:0.010" Maximum gap
Belts:2 V-ribbed belts - arbor b. static dissipative
Blade alignment with miter slot:0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual:±0.25º
Alignment between splitter and blade:0.010" Maximum difference
Miter slots T-shaped:3/4" at top, 1" at bottom, 3/8" deep
Miter slots center:11 1/8" center-to-center
Miter slots info:5 1/2" (arbor flange to center of right slot)
Dust collection port diameter:4"
Dust collection blade guard:polycarbonate, extends only 1-3/16" to right of blade
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert:zero clearance, phenolic core, melamine surfaces
Hand wheels:8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness:0.090" (2.3 mm)
- Getting Started with SawStop Cast Iron Saws
- Industrial Cabinet Saw Parts List
- Industrial Cabinet Saw Owner's Manual (With Dust Collection Upgrades)
- Industrial Cabinet Saw Owner's Manual (Pre Dust Collection Upgrades)
- Industrial Cabinet Saw Owner's Manual
- Industrial Cabinet Saw Front Dust Shroud Replacement (Part #: CB110 011) Guide
- Industrial Cabinet Saw T-Glide Fence System (Part #: CBFRT105 3600 & CBFRT105 5200) Owner's Manual
- Industrial Cabinet Saw T-Glide Fence System (Part #: TGI2-FRT36A & TGI2-FRT52A) Owner's Manual (new RT ready rails)
