Jobsite Saw Pro
Jobsite Saw Pro Jobsite Saw Pro in Storage Jobsite Saw Pro Quick Tilt Adjust Jobsite Saw Pro T-Style Fence Jobsite Saw Pro Easy Mobility Jobsite Saw Pro Onboard Storage video
WORLD'S SAFEST MOBILE SAW

Jobsite Saw Pro

JSS™
The SawStop(R) Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite. The JSS Pro has... Read more

The SawStop(R) Jobsite Saw Pro delivers durability, innovation and precision with a design that’s built for the worksite. The JSS Pro has the following features:

SAWSTOP’S PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.

CLASS-LEADING FEATURES: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from. Included Active Dust Collection Guard for class-leading dust management. One-turn elevation allows the user to raise and lower the blade in a single turn, and the Quick-Tilt adjustment tilts the blade easily and quickly to the ideal angle in 1-degree increments.

HIGH-LOW T-STYLE FENCE WITH ERGOLOCK: The updated Jobsite Saw T-Style Fence slides smooth and lock firm with one touch. Extend the On-Demand shelf for added support, and use the low fence face for safer cutting of thin work pieces.

EASY MOBILITY: Simple, intuitive foot pedal extends the mobile cart for use and collapses the cart for transport.

ONBOARD STORAGE: Keep the accessories contained and protected in the onboard storage drawer. Find the Active Dust Collection Guard, riving knife, miter gauge and more, all ready for quick use.

RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.






0/5


(0 Reviews)

Read less

Starting at: $1,579.00

Build & PriceBuying Options

SawStop’s commitment to quality, innovation, and safety over the past 20+ years has made us the best in the industry. Learn more about what makes a SawStop North America’s #1 selling Cabinet Saw

Features

  • Stowed Dimensions: 26 1/2" L x 29" W x 45" H
  • Class-Leading Table Depth: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from
  • One-Turn Elevation: Raise and lower the blade in just one turn on the handwheel
  • Solid Hi-Low T-Style Fence with Ergolock: Slides easily and locks firm with the push of the innovative Ergolock. 25 1/2” rip capacity
  • Active Dust Collection Blade Guard: Captures above table dust, helping to ensure a safer and cleaner workspace
  • Internal Dust Collection Shroud: Designed to provide superior dust collection capabilities.
  • Easy Mobility: Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport
  • 1 year warranty
  • Jobsite Saw PRO with Mobile Cart Assembly -15A,120V,60Hz

Included Items

  • (1) Collapsible Rolling Cart
  • (1) High/Low T-Style Fence w/Ergolock
  • (1) Miter Gauge
  • (1) JSS Active Dust Collection Blade Guard
  • (1) Riving Knife
  • (2) Blade Wrenches
  • (1) Push Stick
  • (1) 10” Blade

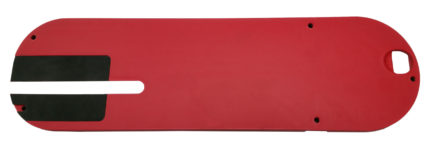

  • (1) Table Insert

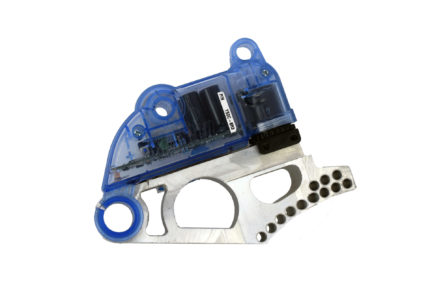

  • (1) Standard Brake Cartridge
  • (1) User’s Guide
  • (1) Assembly Instructions Poster
  • (1) Hardware Pack
  • (1) 3mm Hex Key
  • (1) 4mm Hex Key
  • (1) 5mm Hex Key

Specifications

  • Model Option:10" Jobsite Saw PRO w/mobile cart & high/low fence system

  • Motor Configuration:120 VAC 60 Hz, Universal

  • Amperage:15A

  • Cord Length:116"

  • Sold and Shipped as Full Set Only with Cart : (no Cartless Option Available)

  • Motor Continuous HP:1.5 HP

  • Motor Peak HP:4 HP

  • Saw Dimensions without Cart (Body only):31-3/4" W x 28-3/4" D x 15-1/2" H

  • Saw Dimensions with Open Cart (ready to use):48" W x 29" D x 36" H

  • Saw Dimensions with Closed Cart (on End/stored position):26-1/2" W x 29" D x 45" H

  • Table Dimensions (Retracted):31-1/4" W x 24-5/8" D

  • Table Dimensions (Extended):43-3/8" W x 24-5/8" D

  • Shipping Dimensions:32" W x 43" D x 26" H

  • Shipping Weight (with Cart):137 lbs

  • Weight (Saw Only):84 lbs

  • Weight (with Cart):113 lbs

  • Blade Diameter:10"

  • Dado Diameter:8"

  • Dado Max. Width:13/16"

  • Bevel Angle Range:-1 to 46

  • Max. Depth of Cut, Blade at 0º:3-1/8"

  • Max. Depth of Cut, Blade at 45º:2-1/8"

  • Max. Rip Right of Blade (Extended):25-1/2"

  • Max. Rip Left of Blade:9-3/4"

  • Blade Tilt:Left

  • Arbor Diameter at Blade:5/8"

  • Table in Front of Blade (Max Elev):7-7/8"

  • Table Behind Blade (Max Elev):7-3/8"

  • Miter Slots T-shaped Dimensions:.754" W x .413" D; "T" .956" W x .157" THK

  • Main Bearing Size:62mm OD x 30mm ID x 16mm W

  • Second Bearing Size:52mm OD x 25mm ID x 15mm W

  • Riving Knife/Splitter Thickness:2.3mm (.090")

  • Hand Wheel:Effective diameter 6.3"

  • Belts:Poly-V static dissipative belt

  • Table Flatness Measured Diagonally:0.033" Inches

  • Dust Collection Port Diameter:2-9/16" Outside, 2-1/4" Inside

  • Active Dust Collection Blade Guard:polycarbonate, extends 1" right of blade

  • Blade Guard (Dust Collection) Port Diameter:1-11/16" Outside, 1-3/8" Inside
