Premium Dado Set
BTS-DS8-2402Get unmatched performance with our 8” Premium Dado Set. This stacked dado set features 24-tooth outer blades with left- and right-bevel tooth grind, five flat–grind chippers in a variety of widths to provide the precise dado width you need, and -5° hook angle for less tear–out and aggressiveness, resulting in cleaner one-pass cuts. This set comes with shims to fine-tune a width, as well as a heavy-duty storage case. The Premium Dado Set works on all SawStop table saws except the Compact Table Saw (CTS).
SAWSTOP’S PATENTED SAFETY SYSTEM: This dado set is compatible with SawStop’s renowned skin-sensing safety technology, minimizing or preventing a potentially life-altering injury.
VARIETY OF WIDTHS: The variety of chipper widths allows for maximum flexibility of dado widths, from ¼” to 29/32”, when cutting all materials.
CLEANER CUTS: -5° teeth hook angle means a less aggressive cut and results in less chip-out and cleaner cuts overall.
$299
Buy OnlineLocate DealerSawStop’s commitment to quality, innovation, and safety over the past 20+ years has made us the best in the industry. Learn more about what makes a SawStop North America’s #1 selling Cabinet Saw
Features
- Premium specialized blade set suited for cutting hardwoods, softwoods, and sheet goods.
- 5/8” arbor size
- 24-teeth ATB outer blades
- Flat grind chippers for reliable cutting
- Variety of chipper widths for optimum width flexibility
- -5° teeth hook angle for less chipping and cleaner cuts
- ¼”– 29/32” cutting range
- 6000 maximum RPM.
Included Items
Main Blades
- 8” 24-tooth right-angle outer blade
- (1) 8” 24-tooth left-angle outer blade
- (1) 8” 4-tooth ¼”-wide chipper
- (2) 8” 4-tooth 1/8”-wide chippers
- (1) 8” 4-tooth 1/16”-wide chipper
- (1) 8” 4-tooth 1/32”-wide chipper
- (3) .004”-thick shims
- (3) .008”-thick shims

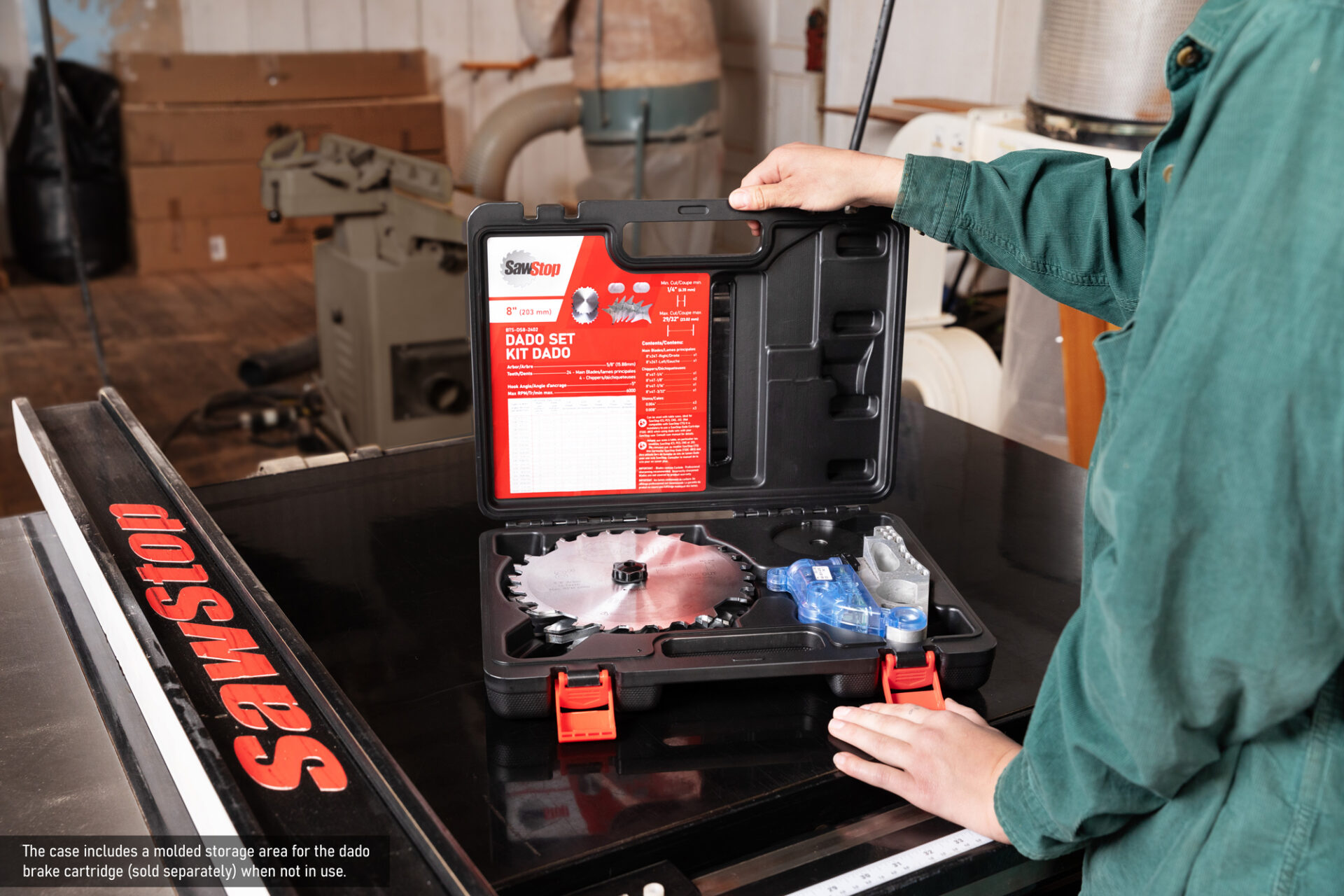

- (1) plastic storage case
Specifications
Shims(3) 0.004” and (3) 0.008”
24-Tooth Outer Blades8” 1/8”-kerf
(1) Kerf 4-Tooth Chipper8” ¼”
(1) Kerf 4-Tooth Chipper8” 1/8”
(1) Kerf 4-Tooth Chipper8” 1/16”
(1) Kerf 4-Tooth Chipper8” 1/32”
Weight (Including Case)8.2 lbs
Arbor5/8" Size On All Blades
Safety
Proven technology that has saved thousands of woodworkers from catastrophic injury.
Quality
Dedication to best-in-class features and materials so you can deliver your best work.
Dealers
Our dealer network is made up of more than 600 authorized dealers who can help find the right SawStop for you.
Testimonials
Don’t just take our word for it. See what SawStop customers have to say.
10” 40- Tooth Blade BTS-R-40ATB
BTS-R-40ATBLearn More
10” 24-Tooth Blade BTS-R-24ATB
BTS-R-24ATBLearn More
10” 40-Tooth Blade CNS-07-148
CNS-07-148Learn More
Jobsite Saw Dado Zero Clearance Insert TSI-DJB
TSI-DJBLearn More
10” 80-Tooth Blade BTS-P-80HATB
BTS-P-80HATBLearn More
10” 60-Tooth Blade CB104 184
CB104 184Learn More

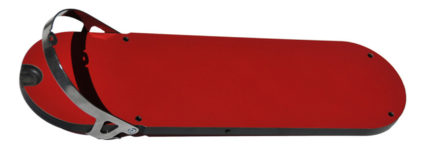

Dado Zero Clearance Insert TSI-DLD
