Shopping for the right table saw can be confusing. There are many different configurations, and many different models. Here, you will be able to discover the differences between SawStop saws. When you have the information to make an informed decision, we know you’ll make the right one.
Compare
VS.
Overview
Feature Highlights
- AIM Technology
- Cast Iron Top
- 30″, 36″, 52″ fence configurations
- SawStop Safety System stops on contact with skin
- Mobile Cart & High Low Fence System
- AIM Safety Technology
- Active Dust Collection Blade Guard
- Deeper Table
- SawStop Safety System stops on contact with skin
AIM Safety System
Yes
Yes
Blade Diameter & Tilt
10", Left Tilt
10", Left Tilt
Power Options
1.75HP
1.5HP
Available Fences
30" Standard
36" T-Glide
52" T-Glide
36" T-Glide
52" T-Glide
High/Low T-Style Fence
Weight
245 - 335 lbs
Dependent on Fence System
Dependent on Fence System
84 lbs, 113 lbs (with Cart)
Overall Saw Dimensions
Width - 58 1/2" (for 30" Fence System), 69 1/8" (for 36" Fence System), 85 1/4" (for 52" Fence System)
Depth - 40" (for 30" Fence System), 45" (for 36" or 52" Fence Systems)
Height - 34 3/4"
Depth - 40" (for 30" Fence System), 45" (for 36" or 52" Fence Systems)
Height - 34 3/4"
Width - 48" (Open), 26 1/2" (On End/Stored)
Depth - 29"
Height - 36" (Open), 45" (On End/Stored)
Depth - 29"
Height - 36" (Open), 45" (On End/Stored)
Available Options
Mobility

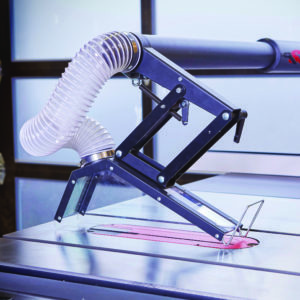

Dust Collection - Dust Collection Blade Guard, Overarm Dust Collection, Floating Dust Collection, Dust Port Adapter
Sliding Crosscut Table

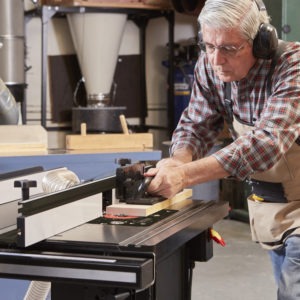

Router Tables - Left Router Table
Cast Iron Wings
Dust Collection - Dust Collection Blade Guard, Overarm Dust Collection, Floating Dust Collection, Dust Port Adapter
Sliding Crosscut Table
Router Tables - Left Router Table
Cast Iron Wings
None - Integrated Mobile Cart Included
Table Flatness (Measured Diagonally)
.016"
.033"
Table Material
Cast Iron
Coated Aluminum
Dust Collection Capability
4" Port in base
2 9/16" port in base
2 1/4" port in guard
2 1/4" port in guard
Blade Guard Type
Standard Guard
Active Dust Collection Blade Guard
Belt
V-Ribbed Belt - Static Dissipative
Poly-V Static Dissipative Belt
Trunnion Mounting
Mounted to table top
Mounted to table top
Access Points to Internal Workings
No access
No access
Hand Wheels / Blade Elevation / Tilt
6" Handwheel - Cast Aluminum with ABS Handle
Smooth worm-gear tilt operation
Smooth worm-gear tilt operation
6.3" Handwheel
Quick single turn elevation
Quick-tilt with counterbalance spring
Quick single turn elevation
Quick-tilt with counterbalance spring
Interlock Switches on Doors
No
N/A
Lockout/Tagout
No
No
Warranty
1 Year
1 Year
Pricing
Starts at $1,979
$1,579
